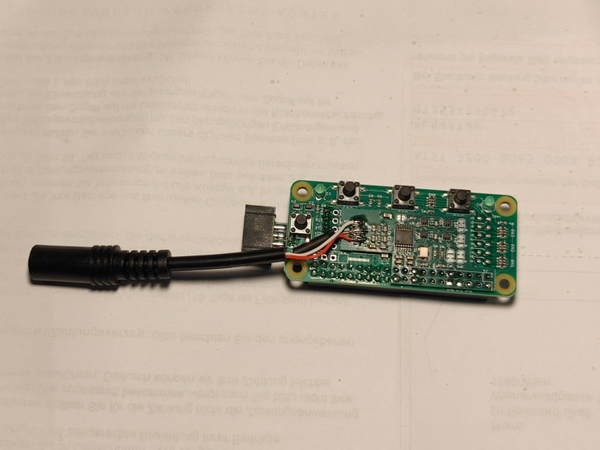

Analog RGBtoHDMI with Audio

This is one variant of the RGBtoHDMI device that, in combination with a Raspberry Pi Zero, allows RGB video signals from certain vintage computers to be converted to an HDMI signal for use with modern monitors and TVs. In fact it is the pre-assembled combination of the CPLD board and the Analog board.

The input connector is a 6-pin IDC socket for which you can either make your own cables, or use one of the ready-made cables on my store. Note that you even need an extra cable if using this device for lumacode input.

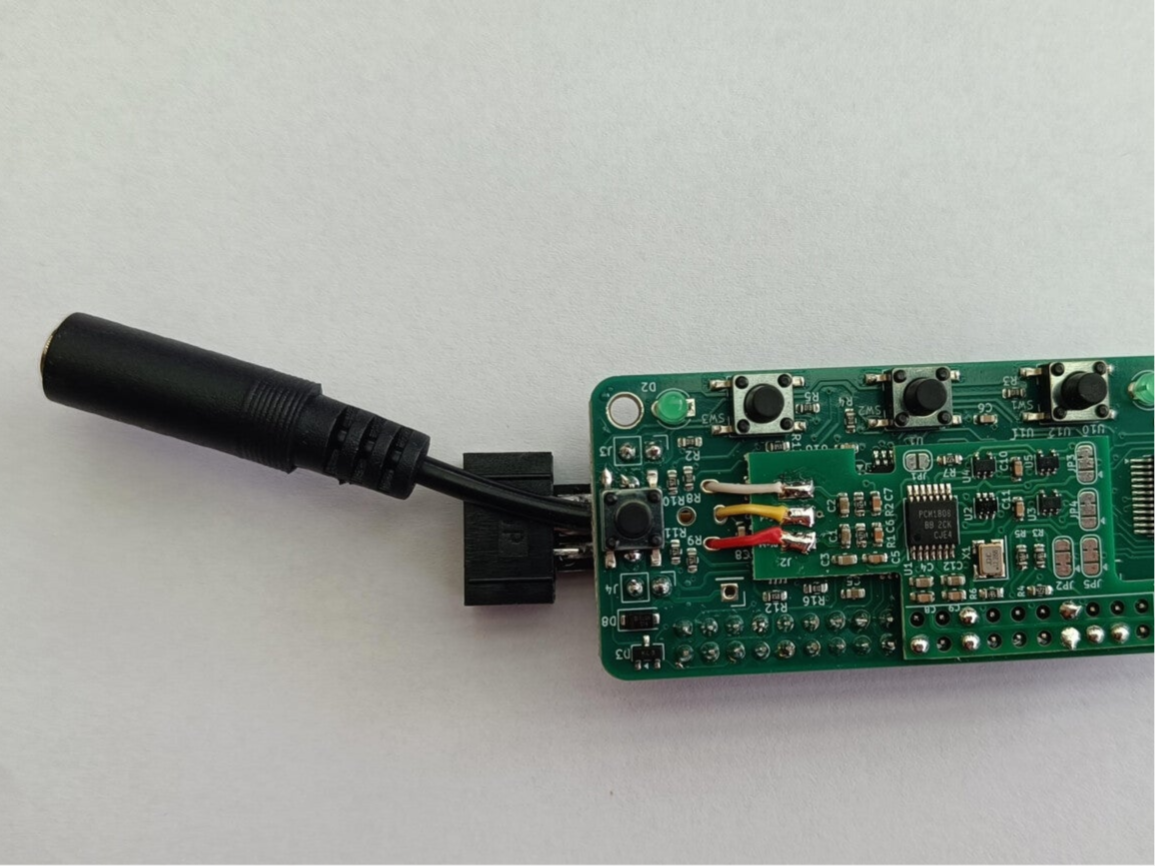

This specific model here also comes with a pre-installed audio add-on board to directly combine the audio signal into the HDMI output.

To get a working RGBtoHDMI upscaler, you need a Raspberry Pi Zero (any variant) with necessary accessories: Micro SDcard, Mini HDMI cable, USB power supply and a way to copy files to the SDcard. You can also get/make the optional device case.

For a working software that already supports audio capture, you need the current beta release.
