TEDdigitizer

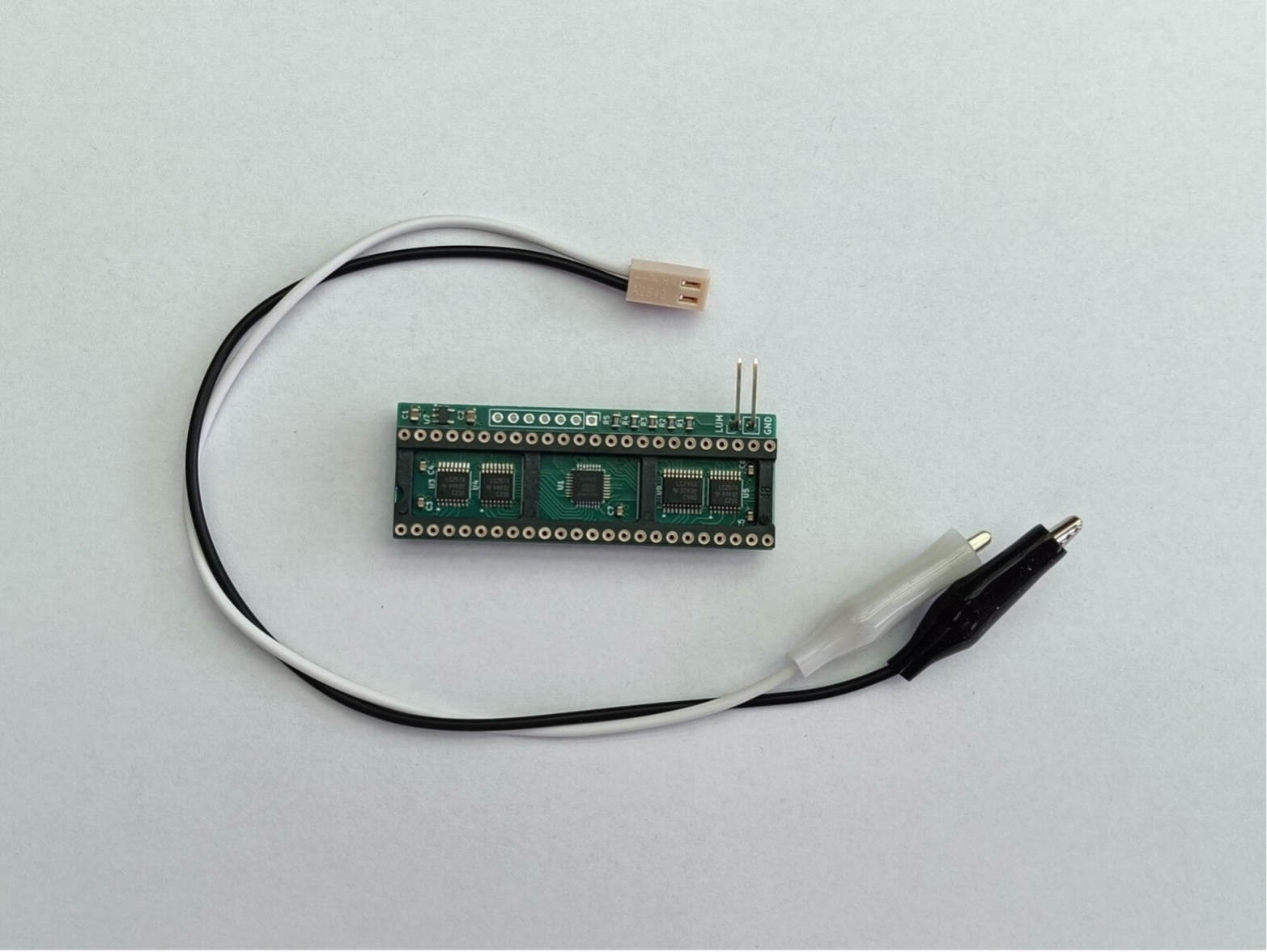

This board can be inserted between the TED chip and its socket in a Commodore 16 or Plus/4 computer.

The FPGA on the board listens to the digital communication between this chip and the rest of the system and re-generates the video output in a near-digital form. This output signal (we call it 'lumacode') can then be flawlessly upscaled to a pixel-perfect HDMI signal using an RGBtoHDMI, an OSSC or something with equal capabilities.

More details are available on the project documentation page.
