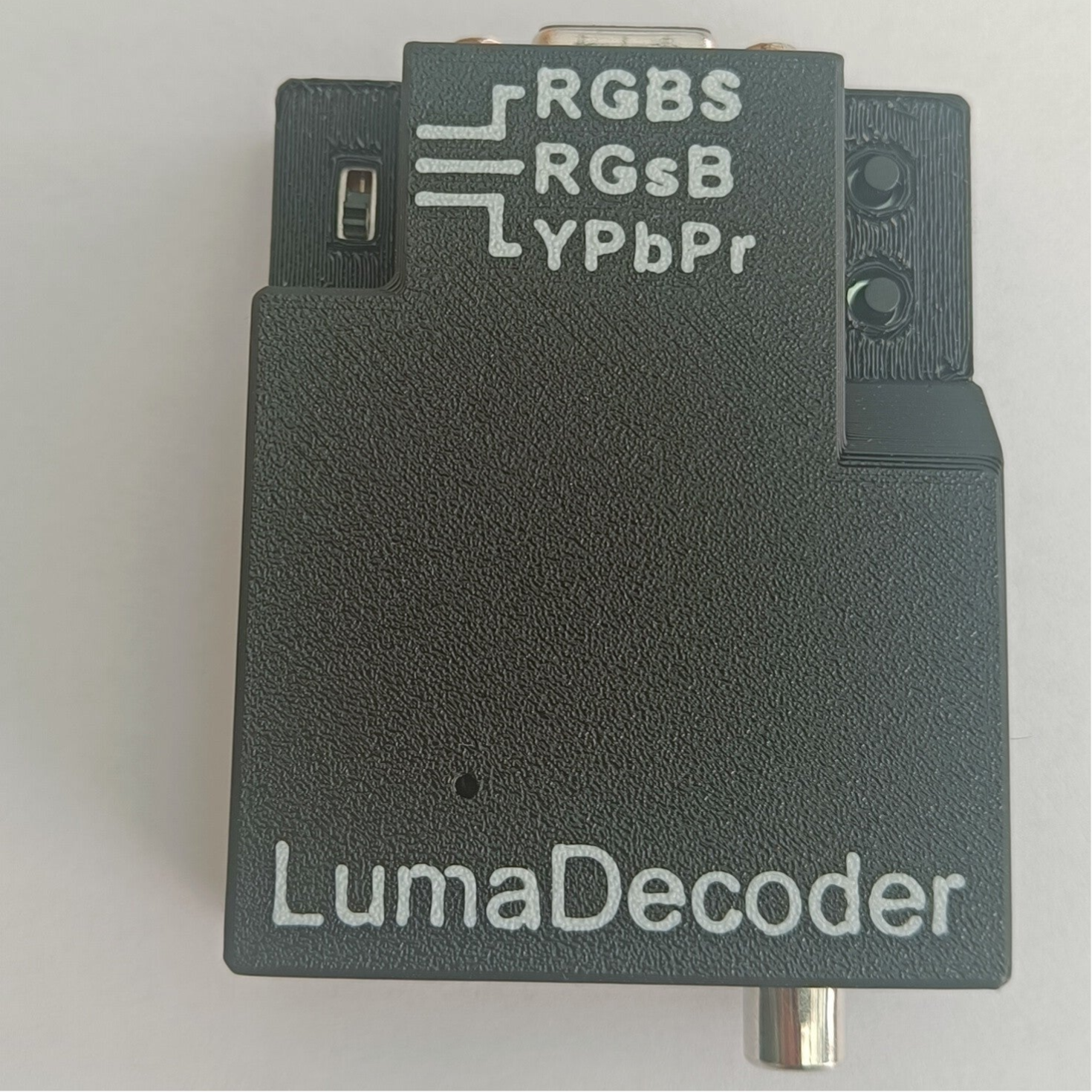

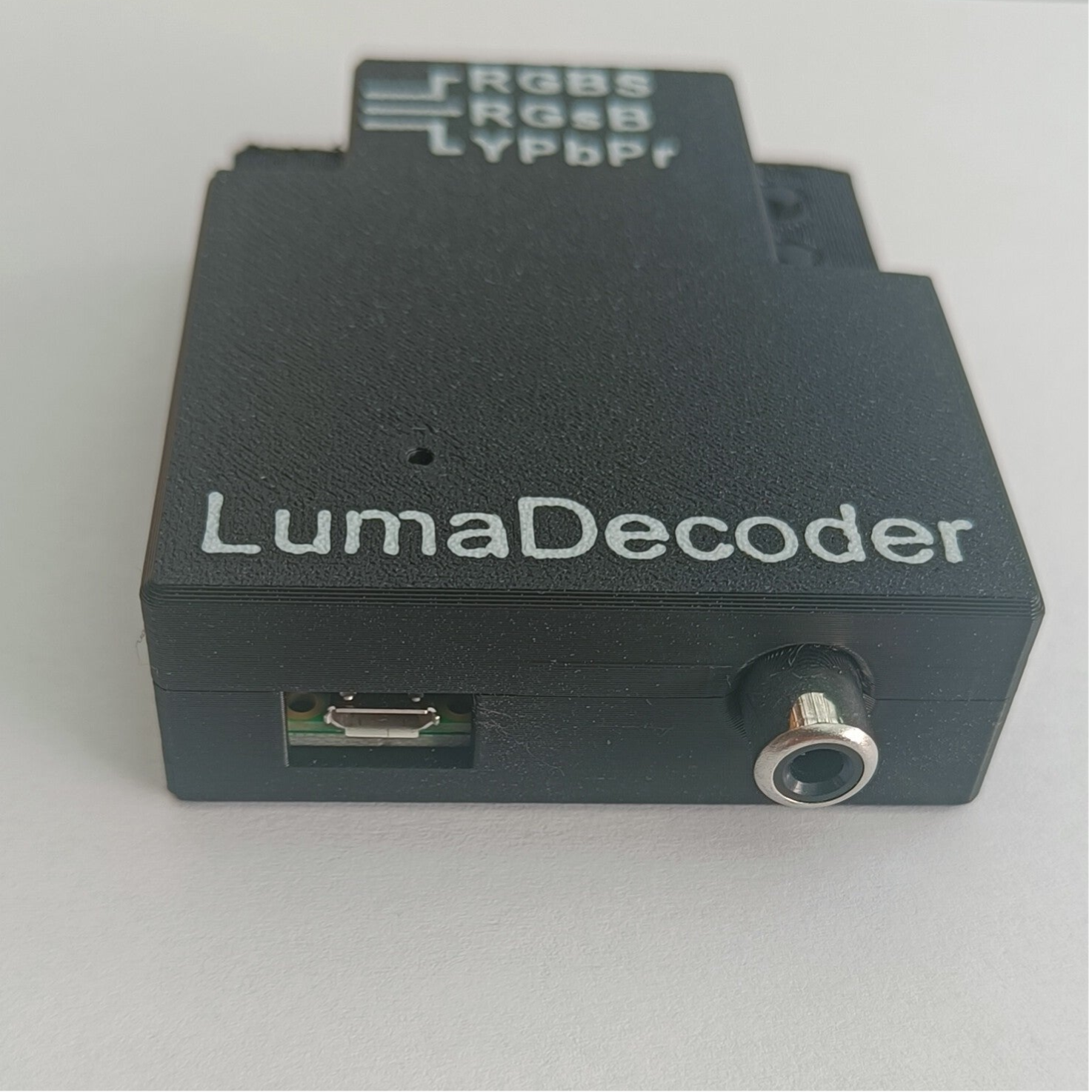

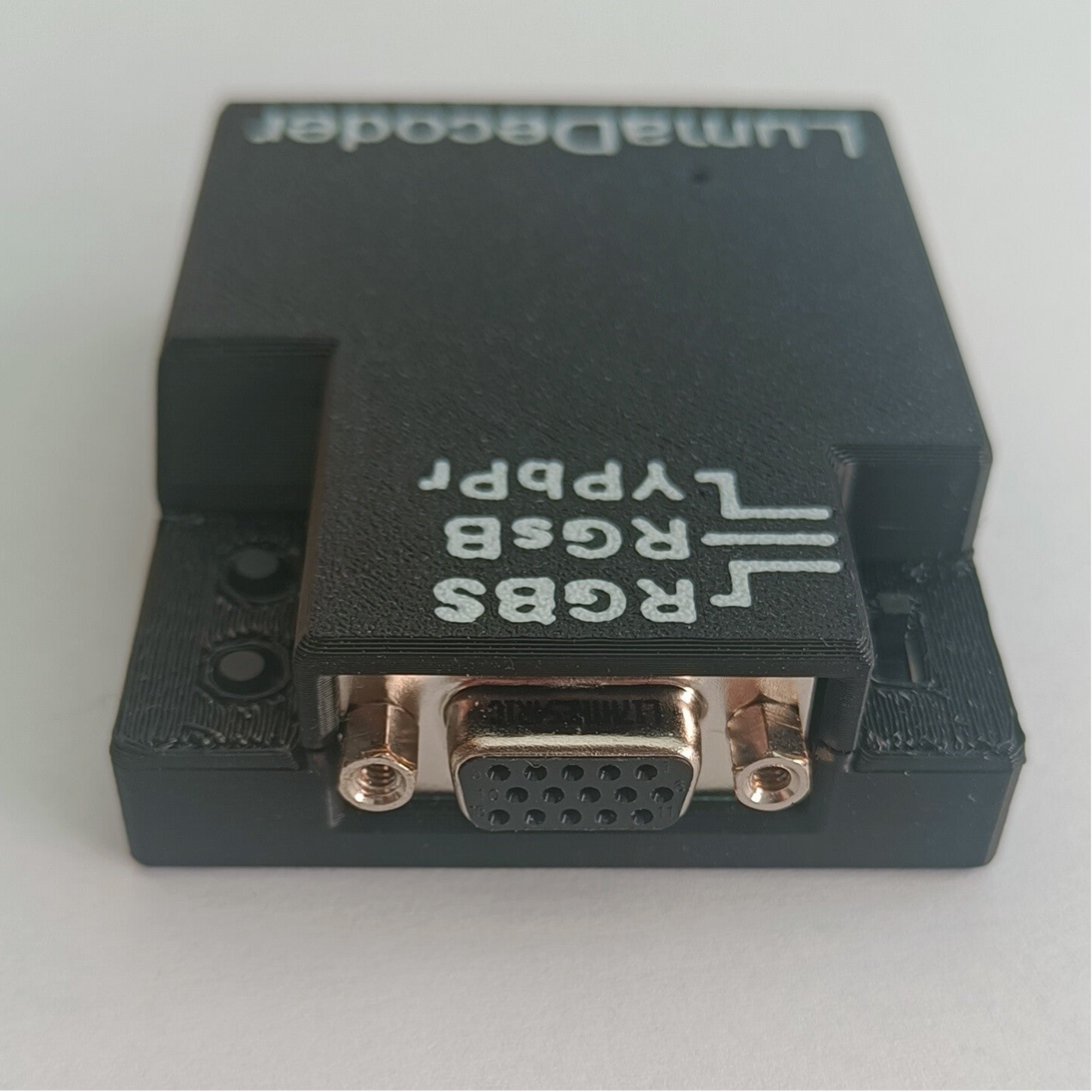

LumaDecoder

€39.00 excl. shipping

This device decodes lumacode from any of the lumacode mod board and creates an RGBS, RGsB or YPbPr signal for use with a 15kHz compatible monitor. Please note that standard VGA monitors will probably not be able to use this signal directly, even if the 15-pin socket looks identical. Also when using it with a device that digitizes the data (like upscalers, scan-doublers, etc.) you may get some slight interference artefacts caused by the 5-ns jitter of the output pixel timing.

It comes with no cables as these are standard parts that can be obtained elsewhere. You need:

  • A properly shielded RCA cable for the lumacode input
  • A micro USB power supply
  • A video cable with a DE-15 plug that connects to the monitor of your choice.

A 3D-printed case is available seperately in this store.

If you want to use the board for internal installation, I can leave the input and output sockets unsoldered (but include them anyway just in case). Please add a comment to this effect when ordering.

More information is available at the documentation page.
